Milling Machines
BF18–BF32Compact Variable-Speed Bench Mill Series
YONGFA manufacturer reference: BF18–BF32
A six-model compact bench-mill range from BF18 to BF32, with 20–30 mm drilling capacity and optional steel stand, 3-axis DRO and X-axis power feed.
- Drilling capacity
- 20–30 mm
- Worktable
- 376 × 120 to 840 × 210 mm
- Table longitudinal travel
- 200–570 mm
Typical applications
Where BF18–BF32 fits.
Confirm the workpiece material, dimensions and required operation before selection. Final suitability depends on the complete job.
- Small-part milling
- Drilling
- Repair and training workshops
Technical data
Compare BF Series models
The final configuration, electrical specification, accessories and documentation are confirmed in the quotation.
| Technical data | BF18 | BF20 | BF25 | BF28 | BF30 | BF32 |
|---|---|---|---|---|---|---|
| Drilling capacity | 20 mm | 20 mm | 25 mm | 28 mm | 30 mm | 30 mm |
| End mill capacity | 16 mm | 16 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| Face mill capacity | 50 mm | 50 mm | 63 mm | 63 mm | 76 mm | 76 mm |
| Spindle taper | MT2 | MT2 | MT3 | MT3 | MT3 | MT3 |
| Spindle stroke | 50 mm | 50 mm | 50 mm | 50 mm | 70 mm | 70 mm |
| Head tilt | ±90° | ±90° | ±90° | ±90° | ±90° | ±90° |
| Spindle speed | 100–2500 rpm | 100–2500 rpm | 100–2500 rpm | 100–2500 rpm | 100–2500 rpm | 100–2500 rpm |
| Worktable | 376 × 120 mm | 476 × 140 mm | 475 × 180 mm | 675 × 180 mm | 700 × 210 mm | 840 × 210 mm |
| Table longitudinal travel | 200 mm | 300 mm | 280 mm | 480 mm | 430 mm | 570 mm |
| Table cross travel | 150 mm | 130 mm | 175 mm | 175 mm | 210 mm | 210 mm |
| Vertical travel | 295 mm | 295 mm | 320 mm | 320 mm | 380 mm | 380 mm |
| T-slots | 3 × 10 mm | 3 × 10 mm | 3 × 12 mm | 3 × 12 mm | 3 × 14 mm | 3 × 14 mm |
| Main motor | 750 W | 750 W | 1.1 kW | 1.1 kW | 1.5 kW | 1.5 kW |
| Overall dimensions | 650 × 520 × 760 mm | 750 × 520 × 760 mm | 560 × 610 × 920 mm | 760 × 700 × 920 mm | 960 × 710 × 1000 mm | 1100 × 710 × 1000 mm |
| Net weight | 70 kg | 80 kg | 110 kg | 125 kg | 210 kg | 225 kg |
| Shipping weight | 85 kg | 95 kg | 130 kg | 145 kg | 245 kg | 260 kg |
| Enquiry form | BF18 | BF20 | BF25 | BF28 | BF30 | BF32 |

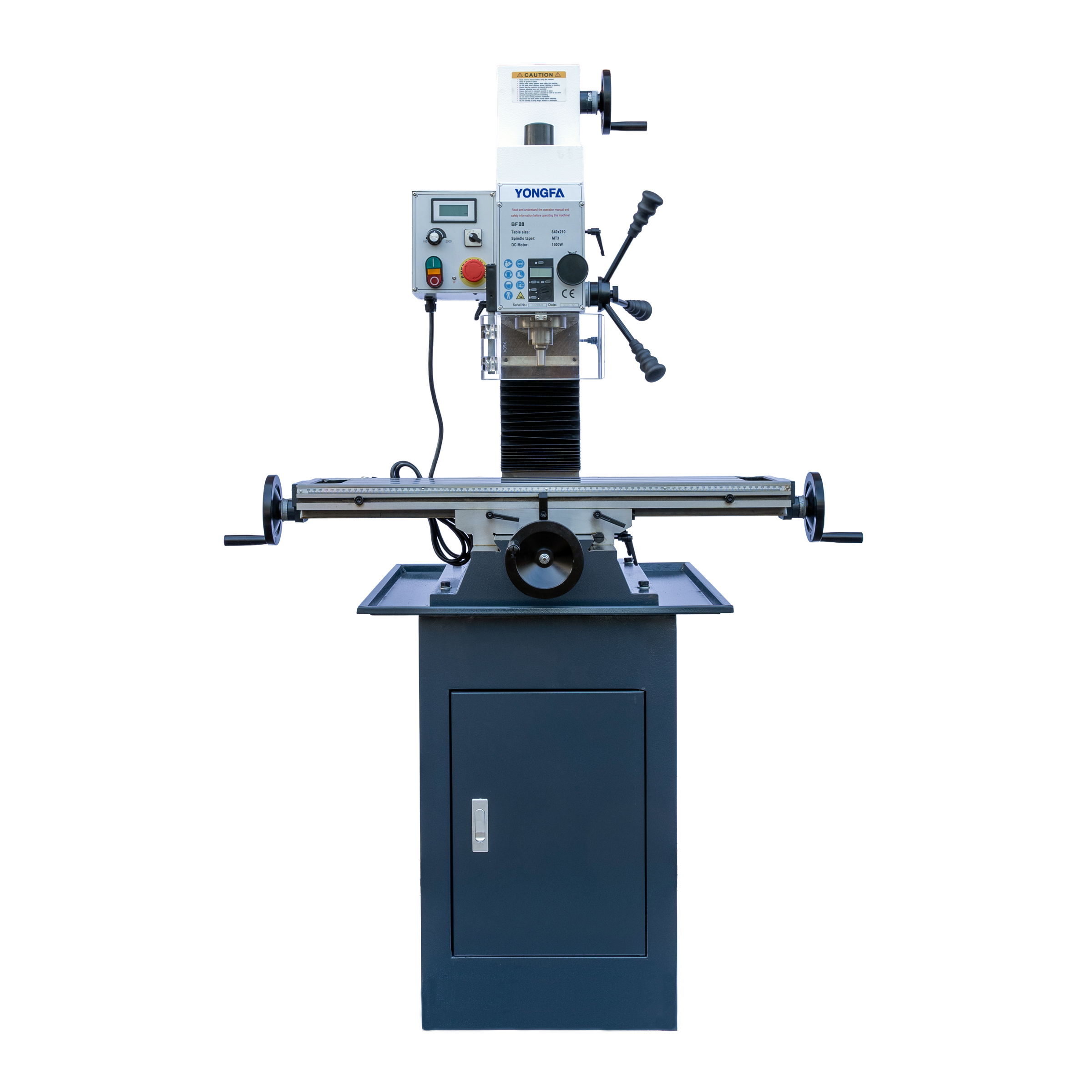

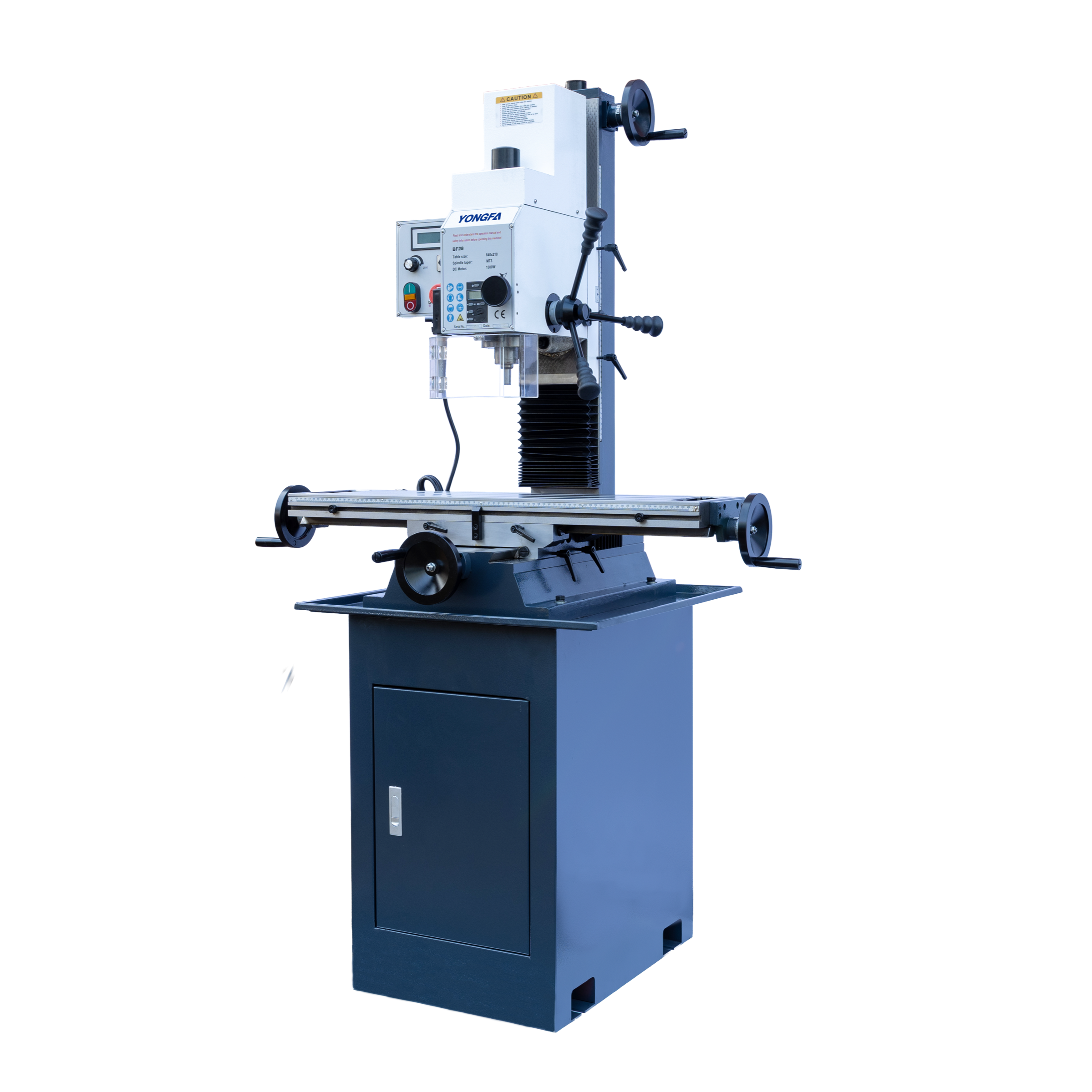

All six models can be specified with an optional steel stand, 3-axis DRO and X-axis power feed. Final electrical supply and configuration are confirmed with the quotation.
Product video
See the machine on video.
Real YONGFA videos to help you review the machine before requesting a quotation.
Product points
Six sizes: BF18, BF20, BF25, BF28, BF30 and BF32
20–30 mm drilling capacity across the range
100–2500 rpm variable spindle speed
Optional stand, 3-axis DRO and X-axis power feed
Customer-specific configuration
Designed as an individual project.
This model is a starting point, not a fixed template applied to every buyer. We review your application, destination, electrical supply, controls, guarding, accessories, documentation, OEM presentation and packing requirements, then document the agreed design before production. Customer-specific drawings, configurations, appearance, branding and project information are treated as confidential and are not published without permission.
X-axis power feed
3-axis DRO
Steel stand
Electrical specification confirmed for destination
