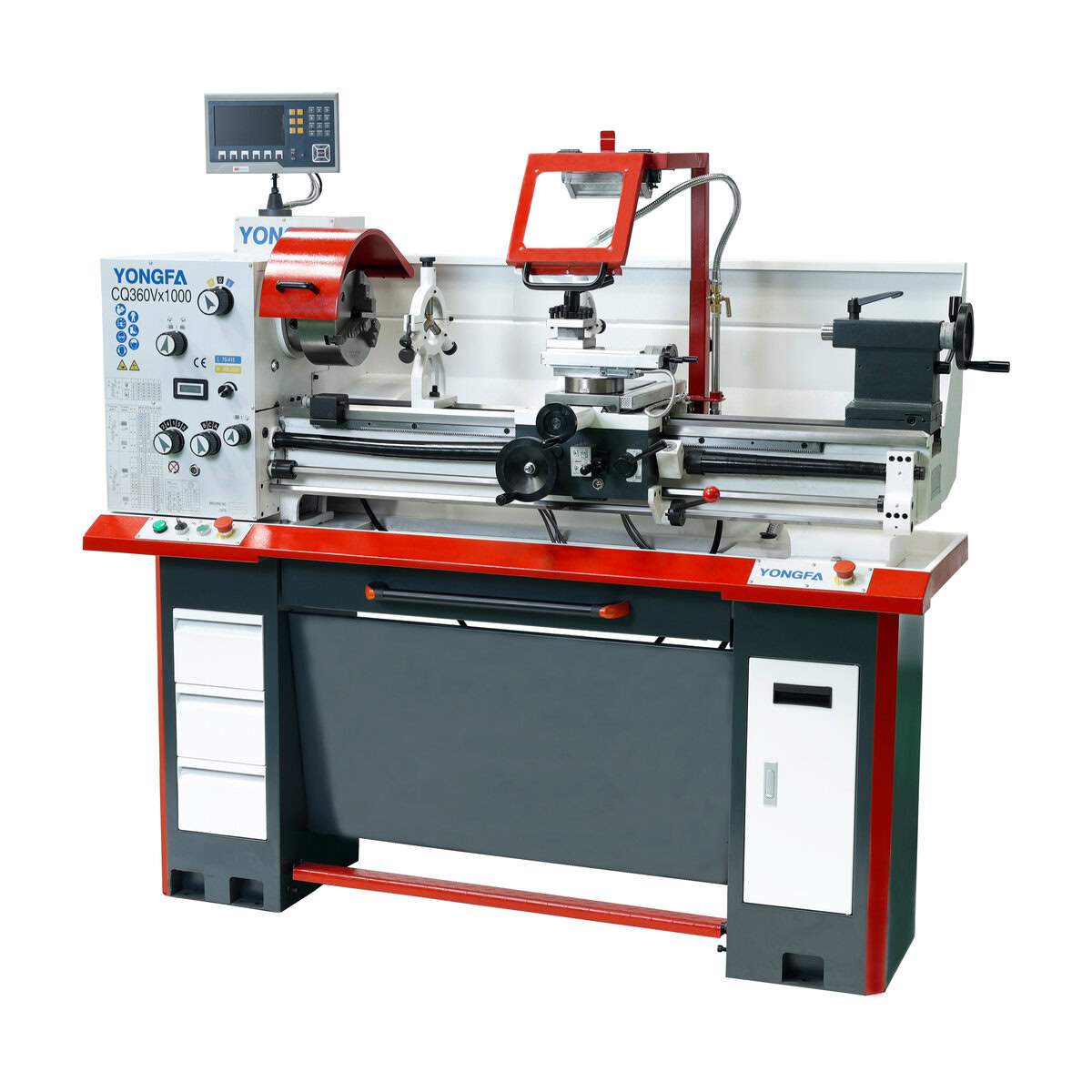

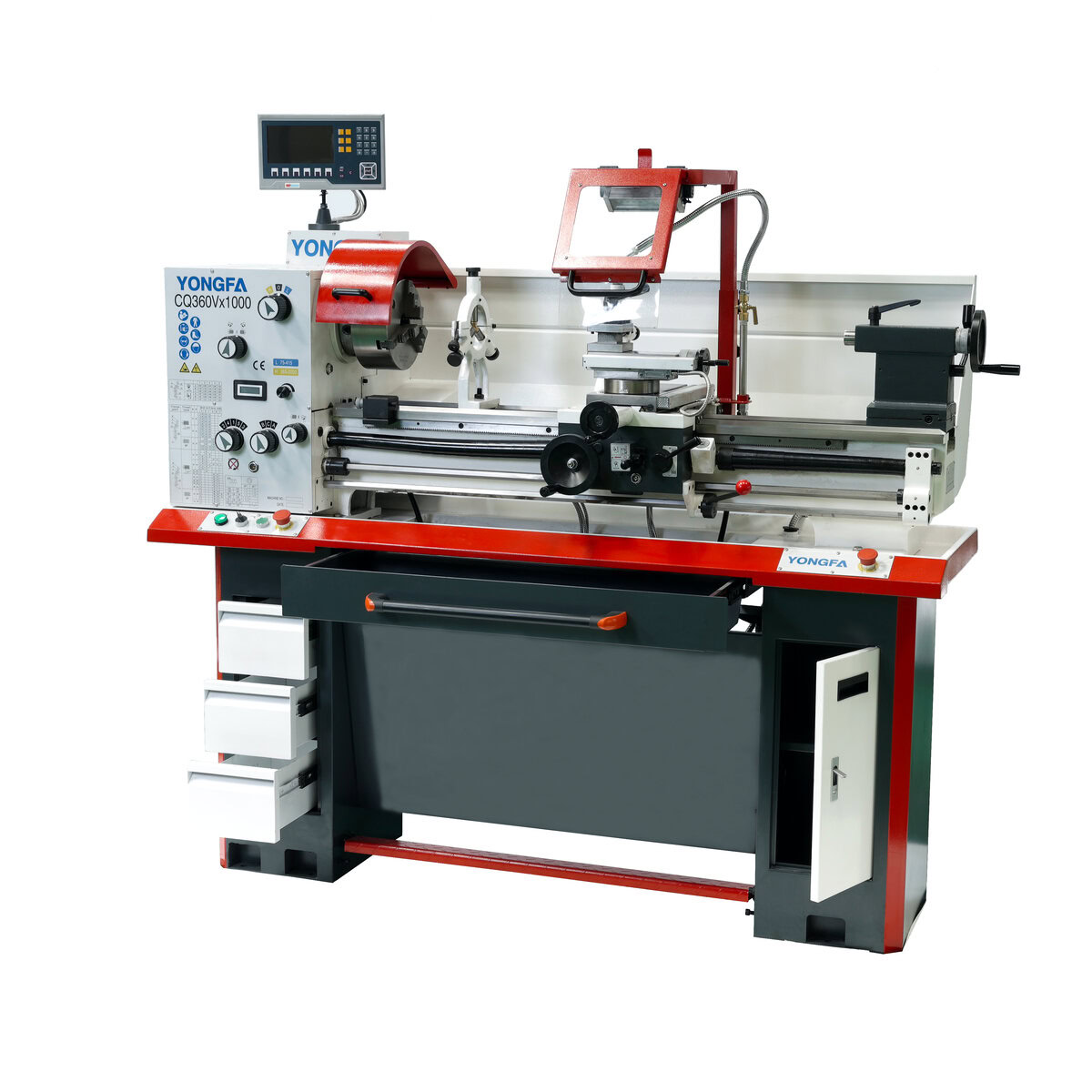

A robust, inverter-controlled precision lathe designed for flexible speed control, long workpiece capacity, and industrial-grade durability. Powered by a Delta VFD, it delivers quieter, smoother, and more efficient turning across various materials.

Key Features:

• Delta Inverter (VFD) enables stepless speed adjustment and energy-efficient performance
• 52mm spindle bore to machine large shaft diameters comes standard
• Electro-magnetic foot brake reduces downtime
• Variable speed changing
• Hardened and polished spindle runs in oil bath
• Tailstock, spindle stock and all guides are adjustable
• Emergency stop & low-voltage control system, CE compliant

Technical data	360×1000 Vario	360×1300 Vario
Swing over bed	360 mm	360 mm
Swing Over cross slide	230 mm	230 mm
Distance between center	1000 mm	1300 mm
Width of bed	195 mm	205 mm
Spindle bore	52 mm	52 mm
Spindle taper	MT6	MT6
Spindle speed	75-2000	75-2000
Tailstock taper	MT3	MT4
Tailstock quill stroke	85 mm	85 mm
Number and range of metric threads	20, 0.25-5.0 mm	20, 0.25-5.0 mm
Number and range of imperial threads	25, 4-60 T.P.I	25, 4-60 T.P.I
Range of longitudinal and cross feed	0.05-0.5mm, 0.02-0.2mm	0.05-0.5mm, 0.02-0.2mm
Motor	2.4 KW	2.4 KW
Packing Dimensions	1830x760x1700 mm	1830x760x1700 mm
Net Weight	550 kg	600 kg
